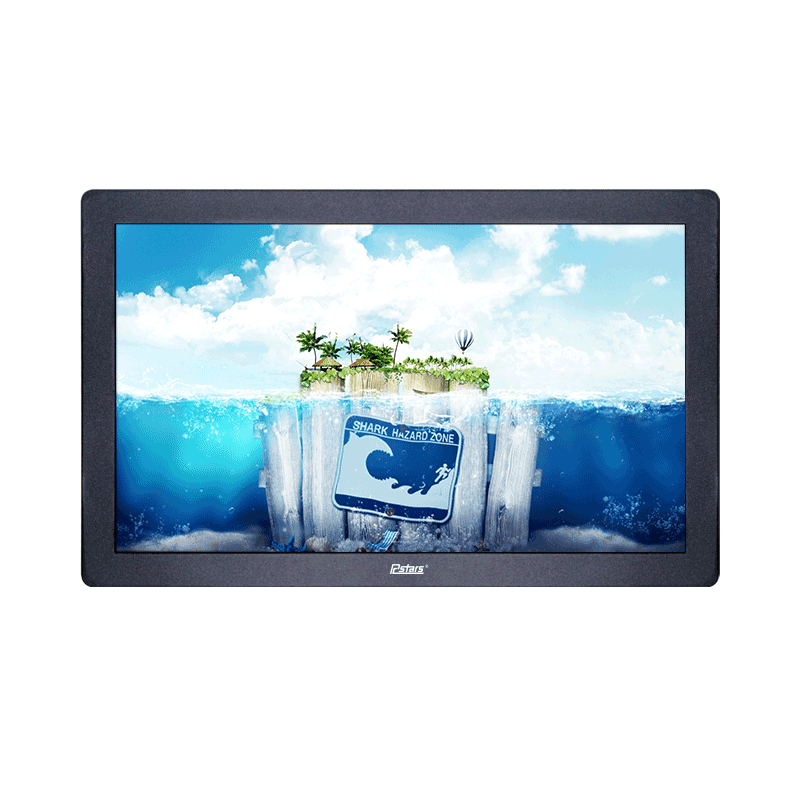

Product features
Android
Plug&Play
Windows
LCD Monitor
Machanical
Metal Material
Design
Close Frame Design
Screen size
10.1”-24”Optional
High Brightness
Normal/500nits-4000nits optional
Color
Black Optional
Installation
Wall-mounting Bracket Optional
Touch
Capacitive touch/IR touch screen optional
Power
DC 12V
Android Network Display
a. Android 7.1/8.1/9.0 operating system optional
b. RK 3288 / RK 3399 optional
c. 2GB/4GB RAM (DDR3) optional
d. 8GB/16GB/32GB/64GB flflash optional
e. 4G(optional)/WLAN/WiFi network connection
f. 802.11 B/G/N Internal WiFi
g. Portrait/landscape display mode
h. 1080P display output
i. Remote management software (CMS) optional
Plug And Play Advertising Display
a. Support picture, music and video to 1080P
b. Support SD/USB inputs
c. Support SD card plug and play automatically
d. USB update function: update documents by USB drive to SD card
e. Support connecting with media player box/PC
f. Playlist function: auto play the designated fifile at the specifific date
g. Timer function: 5 groups timers to turn on/offff at the designated time
All-in-one Windows Display
a. CPU: Intel® Celeron® Processor J1900 /Intel® Core®
Processor I3/I5/I7
b. Chipset: Intel Bay trail SOC /Intel® H310 Chipset
c. System memory: 4GB/8GB RAM, 120GB/240GB SSD
d. Input connectors: VGA/USB/RJ45/Audio
e. Operating system: Windows 7/8/10, Linux
f. Preinstall Intel OS service optional
LCD Monitor
a. Professional design for 7-24 hours operation
b. DP/VGA inputs
c. Full HD resolution supported
d. Support connecting with media player box/PC
Full Specification
SPECIFICATIONS
Panel Model
10.1inch TFT LED
Max Resolution
1280×800
Aspect Ratio
16:10
Pixel Pitch
0.1659×0.1659
Viewing Angle
85/85/85/85
Contrast Ratio
1300:1
Brightness
350cd/m²
Response Time
25ms
Display Area (mm)
216.96×135.60
Panel Size(mm)
241.86×161.6×5.2
Screen Weight
180g
Lamp Type
WLED
POWER
Power
DC 12V
SOUND
5Wx2pcs
MEDIA FORMATS
Video
H.264, MKV, WMV9, MPEG 1/2/4,HD Divx, Xvid, RM/RMVB;
BMP/PNG/GIF/JPEG
Audio
MP3,WMA,WAV,EAAC+, MP2 dec,
Vorbis (Ogg), AC3, FLAC, APE, BSAC
Scrolling Text
txt
ON-SCREEN DISPLAY LANGUAGES
On-screen display languages
English, French, German, Italian,
Polish, Russian, Simplified Chinese,
Spanish, Turkish, Arabic, Japanese,
Traditional Chinese etc.
Warranty
2 years warranty
Operating Humidity
CONNECTORS
USB 2.0
Video MPG AVI MP4, RM RMVB.T5).
Audio (MP3.1920x1080/1080x1920,WMA),
lmage (UPG, GIF,BMP,PNG)
SD
4G SIM (Optional)
LTE
DP
LAN
RJ45 Port, 10/100M Ethernet
WiFi
Built-in WiFi 802.11B/G/N
USB
USB 2.0 HOST (x2)
LAN
10/100M Ethernet (Network version screen only)
Wi-Fi
802.11 b/g/n (Network version screen only)
SPECIFICATIONS
Panel Model
12.1inch TFT LED
Max Resolution
1280x800(WXGA)
Aspect Ratio
16:10
Pixel Pitch
0.204x0.204
Viewing Angle
80/80/65/80
Contrast Ratio
800:1
Brightness
400cd/m²
Response Time
35ms
Display Area (mm)
261.12x163.2
Panel Size(mm)
278x184x8.6
Screen Weight
550g
Lamp Type
WLED
POWER
Power
DC 12V
SOUND
5Wx2pcs
MEDIA FORMATS
Video
H.264, MKV, WMV9, MPEG 1/2/4,HD Divx, Xvid, RM/RMVB;
BMP/PNG/GIF/JPEG
Audio
MP3,WMA,WAV,EAAC+, MP2 dec,
Vorbis (Ogg), AC3, FLAC, APE, BSAC
Scrolling Text
txt
ON-SCREEN DISPLAY LANGUAGES
On-screen display languages
English, French, German, Italian,
Polish, Russian, Simplified Chinese,
Spanish, Turkish, Arabic, Japanese,
Traditional Chinese etc.
Warranty
2 years warranty
Operating Humidity
CONNECTORS
USB 2.0
Video MPG AVI MP4, RM RMVB.T5).
Audio (MP3.1920x1080/1080x1920,WMA),
lmage (UPG, GIF,BMP,PNG)
SD
4G SIM (Optional)
LTE
DP
LAN
RJ45 Port, 10/100M Ethernet
WiFi
Built-in WiFi 802.11B/G/N
USB
USB 2.0 HOST (x2)
LAN
10/100M Ethernet (Network version screen only)
Wi-Fi
802.11 b/g/n (Network version screen only)
SPECIFICATIONS
Panel Model
13.3inch TFT LED
Max Resolution
1920x1080
Aspect Ratio
16:09
Pixel Pitch
0.153x0.153
Viewing Angle
85/85/85/85
Contrast Ratio
800:1
Brightness
300cd/m²
Response Time
30ms
Display Area (mm)
293.76x165.24
Panel Size(mm)
300.26x188.25x2.4
Screen Weight
215g
Lamp Type
WLED
POWER
Power
DC 12V
SOUND
5Wx2pcs
MEDIA FORMATS
Video
H.264, MKV, WMV9, MPEG 1/2/4,HD Divx, Xvid, RM/RMVB;
BMP/PNG/GIF/JPEG
Audio
MP3,WMA,WAV,EAAC+, MP2 dec,
Vorbis (Ogg), AC3, FLAC, APE, BSAC
Scrolling Text
txt
ON-SCREEN DISPLAY LANGUAGES
On-screen display languages
English, French, German, Italian,
Polish, Russian, Simplified Chinese,
Spanish, Turkish, Arabic, Japanese,
Traditional Chinese etc.
Warranty
2 years warranty
Operating Humidity
CONNECTORS
USB 2.0
Video MPG AVI MP4, RM RMVB.T5).
Audio (MP3.1920x1080/1080x1920,WMA),
lmage (UPG, GIF,BMP,PNG)
SD
4G SIM (Optional)
LTE
DP
LAN
RJ45 Port, 10/100M Ethernet
WiFi
Built-in WiFi 802.11B/G/N
USB
USB 2.0 HOST (x2)
LAN
10/100M Ethernet (Network version screen only)
Wi-Fi
802.11 b/g/n (Network version screen only)
SPECIFICATIONS
Panel Model
15inch TFT LED
Max Resolution
1024x768
Aspect Ratio
4:03
Pixel Pitch
0.297x0.297
Viewing Angle
80/80/80/80
Contrast Ratio
600:1
Brightness
250cd/m²
Response Time
8ms
Display Area (mm)
304.1x228.1
Panel Size(mm)
326.5x253.5x9.6
Screen Weight
950g
Lamp Type
WLED
POWER
Power
DC 12V
SOUND
5Wx2pcs
MEDIA FORMATS
Video
H.264, MKV, WMV9, MPEG 1/2/4,HD Divx, Xvid, RM/RMVB;
BMP/PNG/GIF/JPEG
Audio
MP3,WMA,WAV,EAAC+, MP2 dec,
Vorbis (Ogg), AC3, FLAC, APE, BSAC
Scrolling Text
txt
ON-SCREEN DISPLAY LANGUAGES
On-screen display languages
English, French, German, Italian,
Polish, Russian, Simplified Chinese,
Spanish, Turkish, Arabic, Japanese,
Traditional Chinese etc.
Warranty
2 years warranty
Operating Humidity
CONNECTORS
USB 2.0
Video MPG AVI MP4, RM RMVB.T5).
Audio (MP3.1920x1080/1080x1920,WMA),
lmage (UPG, GIF,BMP,PNG)
SD
4G SIM (Optional)
LTE
DP
LAN
RJ45 Port, 10/100M Ethernet
WiFi
Built-in WiFi 802.11B/G/N
USB
USB 2.0 HOST (x2)
LAN
10/100M Ethernet (Network version screen only)
Wi-Fi
802.11 b/g/n (Network version screen only)
SPECIFICATIONS
Panel Model
15.6inch TFT LCD
Max Resolution
1920x1080
Aspect Ratio
16:09
Pixel Pitch
0.17925×0.17925
Viewing Angle
85/85/85/85
Contrast Ratio
700:1
Brightness
300cd/m²
Response Time
25ms
Display Area (mm)
344.16x193.59
Panel Size(mm)
359.5x223.8x3.2
Screen Weight
1.2KG
Lamp Type
WLED
POWER
Power
DC 12V
SOUND
5Wx2pcs
MEDIA FORMATS
Video
H.264, MKV, WMV9, MPEG 1/2/4,HD Divx, Xvid, RM/RMVB;
BMP/PNG/GIF/JPEG
Audio
MP3,WMA,WAV,EAAC+, MP2 dec,
Vorbis (Ogg), AC3, FLAC, APE, BSAC
Scrolling Text
txt
ON-SCREEN DISPLAY LANGUAGES
On-screen display languages
English, French, German, Italian,
Polish, Russian, Simplified Chinese,
Spanish, Turkish, Arabic, Japanese,
Traditional Chinese etc.
Warranty
2 years warranty
Operating Humidity
CONNECTORS
USB 2.0
Video MPG AVI MP4, RM RMVB.T5).
Audio (MP3.1920x1080/1080x1920,WMA),
lmage (UPG, GIF,BMP,PNG)
SD
4G SIM (Optional)
LTE
DP
LAN
RJ45 Port, 10/100M Ethernet
WiFi
Built-in WiFi 802.11B/G/N
USB
USB 2.0 HOST (x2)
LAN
10/100M Ethernet (Network version screen only)
Wi-Fi
802.11 b/g/n (Network version screen only)
SPECIFICATIONS
Panel Model
17inch TFT LCD
Max Resolution
1280x1024
Aspect Ratio
5:04
Pixel Pitch
0.264x0.264
Viewing Angle
88/88/88/88
Contrast Ratio
1000:1
Brightness
400cd/m²
Response Time
25ms
Display Area (mm)
337.92x270.336
Panel Size(mm)
358.5x296.5x13.4
Screen Weight
1.27KG
Lamp Type
WLED
POWER
Power
DC 12V
SOUND
5Wx2pcs
MEDIA FORMATS
Video
H.264, MKV, WMV9, MPEG 1/2/4,HD Divx, Xvid, RM/RMVB;
BMP/PNG/GIF/JPEG
Audio
MP3,WMA,WAV,EAAC+, MP2 dec,
Vorbis (Ogg), AC3, FLAC, APE, BSAC
Scrolling Text
txt
ON-SCREEN DISPLAY LANGUAGES
On-screen display languages
English, French, German, Italian,
Polish, Russian, Simplified Chinese,
Spanish, Turkish, Arabic, Japanese,
Traditional Chinese etc.
Warranty
2 years warranty
Operating Humidity
CONNECTORS
USB 2.0
Video MPG AVI MP4, RM RMVB.T5).
Audio (MP3.1920x1080/1080x1920,WMA),
lmage (UPG, GIF,BMP,PNG)
SD
4G SIM (Optional)
LTE
DP
LAN
RJ45 Port, 10/100M Ethernet
WiFi
Built-in WiFi 802.11B/G/N
USB
USB 2.0 HOST (x2)
LAN
10/100M Ethernet (Network version screen only)
Wi-Fi
802.11 b/g/n (Network version screen only)
SPECIFICATIONS
Panel Model
17.3inch TFT LCD
Max Resolution
1920x1080
Aspect Ratio
16:09
Pixel Pitch
0.1989x0.1989
Viewing Angle
80/80/80/80
Contrast Ratio
700:1
Brightness
300cd/m²
Response Time
25ms
Display Area (mm)
381.89x214.81
Panel Size(mm)
388.1x246.6x4
Screen Weight
550g
Lamp Type
WLED
POWER
Power
DC 12V
SOUND
5Wx2pcs
MEDIA FORMATS
Video
H.264, MKV, WMV9, MPEG 1/2/4,HD Divx, Xvid, RM/RMVB;
BMP/PNG/GIF/JPEG
Audio
MP3,WMA,WAV,EAAC+, MP2 dec,
Vorbis (Ogg), AC3, FLAC, APE, BSAC
Scrolling Text
txt
ON-SCREEN DISPLAY LANGUAGES
On-screen display languages
English, French, German, Italian,
Polish, Russian, Simplified Chinese,
Spanish, Turkish, Arabic, Japanese,
Traditional Chinese etc.
Warranty
2 years warranty
Operating Humidity
CONNECTORS
USB 2.0
Video MPG AVI MP4, RM RMVB.T5).
Audio (MP3.1920x1080/1080x1920,WMA),
lmage (UPG, GIF,BMP,PNG)
SD
4G SIM (Optional)
LTE
DP
LAN
RJ45 Port, 10/100M Ethernet
WiFi
Built-in WiFi 802.11B/G/N
USB
USB 2.0 HOST (x2)
LAN
10/100M Ethernet (Network version screen only)
Wi-Fi
802.11 b/g/n (Network version screen only)
SPECIFICATIONS
Panel Model
18.5inch TFT LCD
Max Resolution
1366x768
Aspect Ratio
16:09
Pixel Pitch
0.300×0.300
Viewing Angle
89/89/89/89
Contrast Ratio
1000:1
Brightness
300cd/m²
Response Time
14ms
Display Area (mm)
409.8x230.4
Panel Size(mm)
430.4x254.6x7.8
Screen Weight
1.29KG
Lamp Type
WLED
POWER
Power
DC 12V
SOUND
5Wx2pcs
MEDIA FORMATS
Video
H.264, MKV, WMV9, MPEG 1/2/4,HD Divx, Xvid, RM/RMVB;
BMP/PNG/GIF/JPEG
Audio
MP3,WMA,WAV,EAAC+, MP2 dec,
Vorbis (Ogg), AC3, FLAC, APE, BSAC
Scrolling Text
txt
ON-SCREEN DISPLAY LANGUAGES
On-screen display languages
English, French, German, Italian,
Polish, Russian, Simplified Chinese,
Spanish, Turkish, Arabic, Japanese,
Traditional Chinese etc.
Warranty
2 years warranty
Operating Humidity
CONNECTORS
USB 2.0
Video MPG AVI MP4, RM RMVB.T5).
Audio (MP3.1920x1080/1080x1920,WMA),
lmage (UPG, GIF,BMP,PNG)
SD
4G SIM (Optional)
LTE
DP
LAN
RJ45 Port, 10/100M Ethernet
WiFi
Built-in WiFi 802.11B/G/N
USB
USB 2.0 HOST (x2)
LAN
10/100M Ethernet (Network version screen only)
Wi-Fi
802.11 b/g/n (Network version screen only)
SPECIFICATIONS
Panel Model
21.5inch TFT LCD
Max Resolution
1920x1080
Aspect Ratio
16:09
Pixel Pitch
0.24795×0.24795
Viewing Angle
89/89/89/89
Contrast Ratio
1000:1
Brightness
250cd/m²
Response Time
14ms
Display Area (mm)
476.064x267.786
Panel Size(mm)
495.6x292.2x10.7
Screen Weight
2KG
Lamp Type
WLED
POWER
Power
DC 12V
SOUND
5Wx2pcs
MEDIA FORMATS
Video
H.264, MKV, WMV9, MPEG 1/2/4,HD Divx, Xvid, RM/RMVB;
BMP/PNG/GIF/JPEG
Audio
MP3,WMA,WAV,EAAC+, MP2 dec,
Vorbis (Ogg), AC3, FLAC, APE, BSAC
Scrolling Text
txt
ON-SCREEN DISPLAY LANGUAGES
On-screen display languages
English, French, German, Italian,
Polish, Russian, Simplified Chinese,
Spanish, Turkish, Arabic, Japanese,
Traditional Chinese etc.
Warranty
2 years warranty
Operating Humidity
CONNECTORS
USB 2.0
Video MPG AVI MP4, RM RMVB.T5).
Audio (MP3.1920x1080/1080x1920,WMA),
lmage (UPG, GIF,BMP,PNG)
SD
4G SIM (Optional)
LTE
DP
LAN
RJ45 Port, 10/100M Ethernet
WiFi
Built-in WiFi 802.11B/G/N
USB
USB 2.0 HOST (x2)
LAN
10/100M Ethernet (Network version screen only)
Wi-Fi
802.11 b/g/n (Network version screen only)
SPECIFICATIONS
Panel Model
23.8inch TFT LCD
Max Resolution
1920x1080
Aspect Ratio
16:09
Pixel Pitch
0.2745x0.2745
Viewing Angle
89/89/89/89
Contrast Ratio
1000:1
Brightness
250cd/m²
Response Time
15ms
Display Area (mm)
527.04x296.46
Panel Size(mm)
543x317.4x11.6
Screen Weight
2.27KG
Lamp Type
WLED
POWER
Power
DC 12V
SOUND
10Wx2pcs
MEDIA FORMATS
Video
H.264, MKV, WMV9, MPEG 1/2/4,HD Divx, Xvid, RM/RMVB;
BMP/PNG/GIF/JPEG
Audio
MP3,WMA,WAV,EAAC+, MP2 dec,
Vorbis (Ogg), AC3, FLAC, APE, BSAC
Scrolling Text
txt
ON-SCREEN DISPLAY LANGUAGES
On-screen display languages
English, French, German, Italian,
Polish, Russian, Simplified Chinese,
Spanish, Turkish, Arabic, Japanese,
Traditional Chinese etc.
Warranty
2 years warranty
Operating Humidity
CONNECTORS
USB 2.0
Video MPG AVI MP4, RM RMVB.T5).
Audio (MP3.1920x1080/1080x1920,WMA),
lmage (UPG, GIF,BMP,PNG)
SD
4G SIM (Optional)
LTE
DP
LAN
RJ45 Port, 10/100M Ethernet
WiFi
Built-in WiFi 802.11B/G/N
USB
USB 2.0 HOST (x2)
LAN
10/100M Ethernet (Network version screen only)
Wi-Fi
802.11 b/g/n (Network version screen only)
