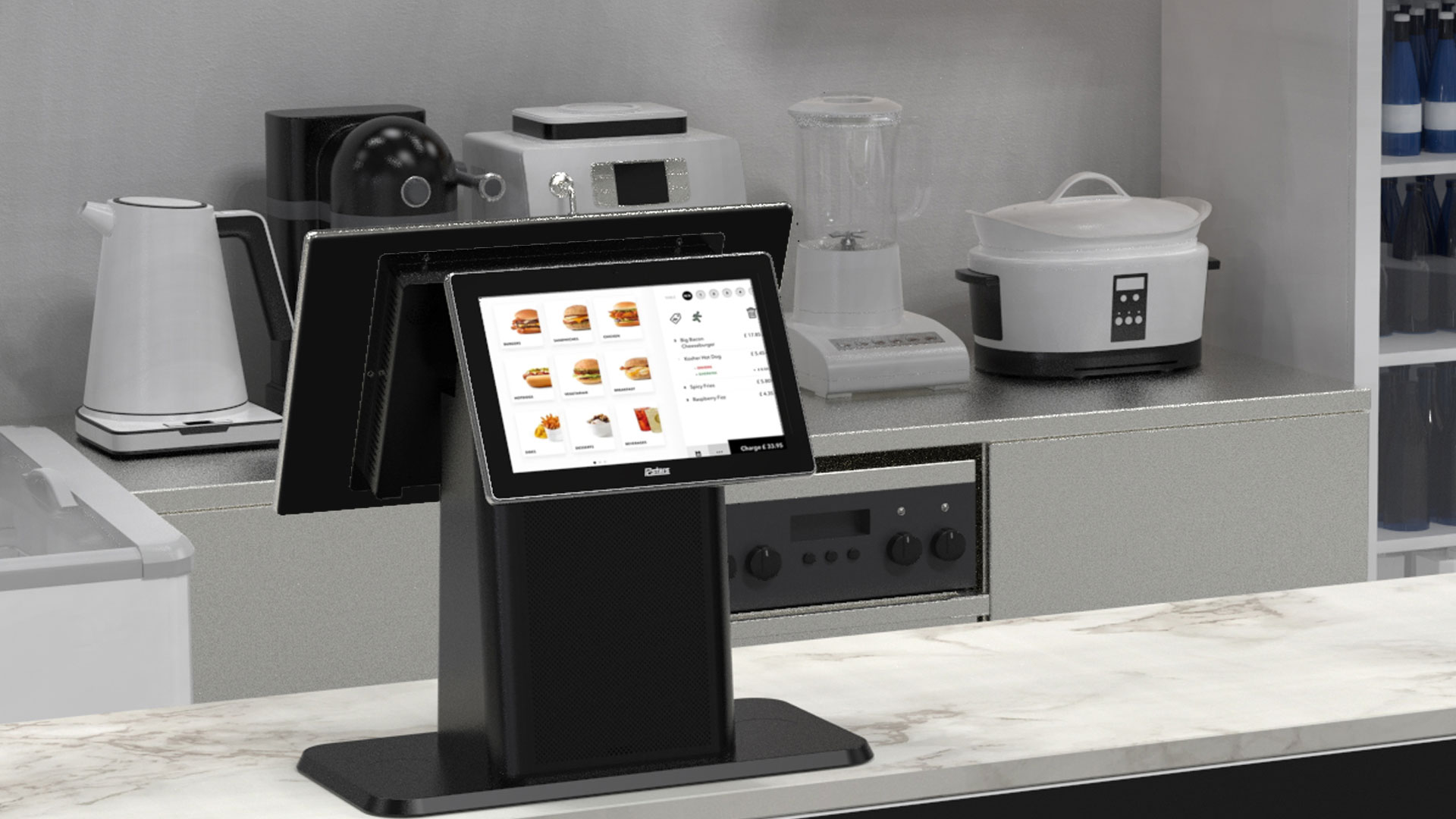

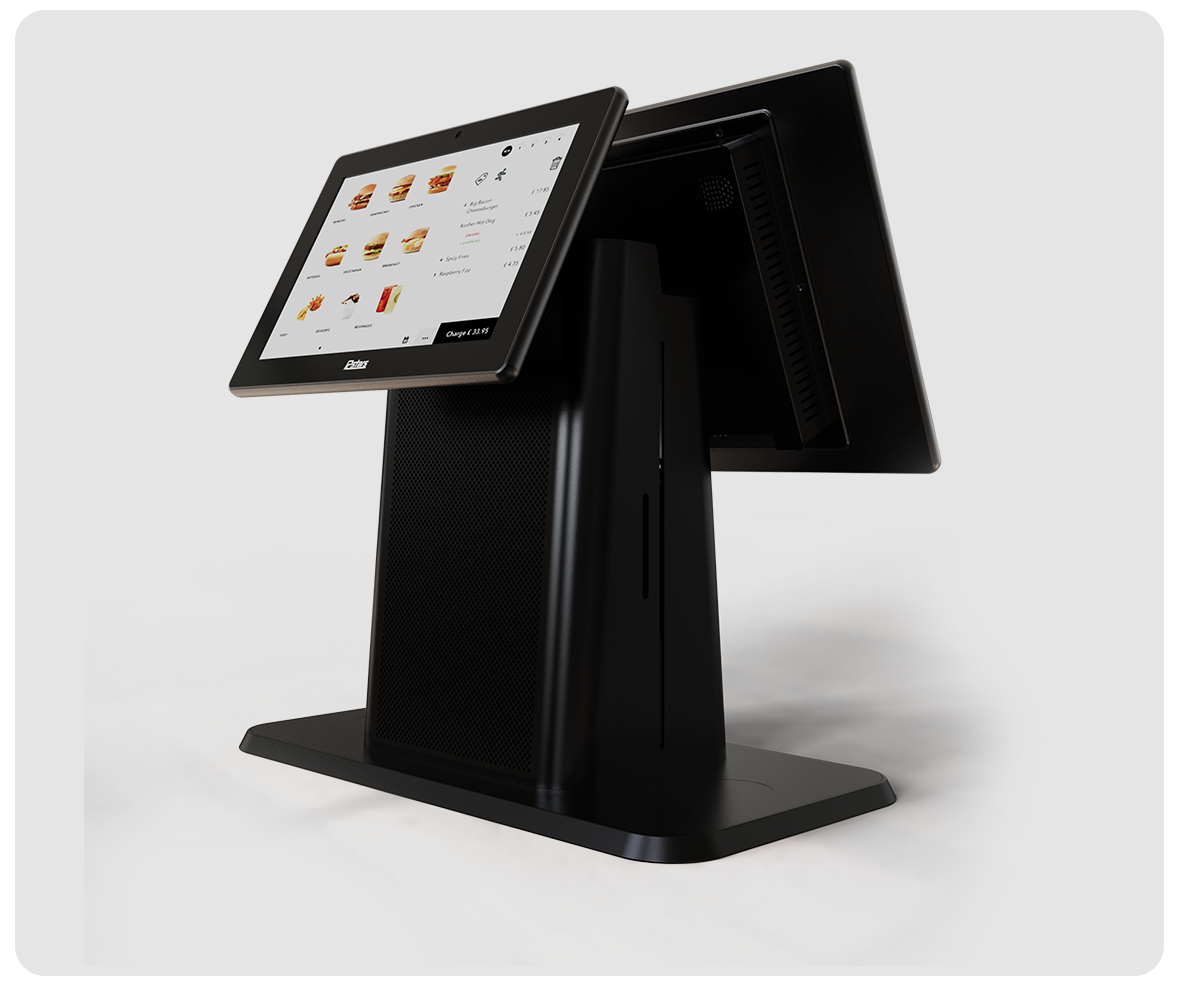

10.1"+15.6"Desktop Double-sided cash all-in-one PC kiosk

RCS-101+156CRTPC-PCAP

Product features

AndroidAndroid

Plug & PlayPlug & Play

WindowsWindows

LCD MonitorLCD Monitor

Machanical

Metal shell material

Color

Black Optional

Glass

Tempered Glass Protection

Optional size

10.1"without touch/15.6"capacitive touch

Application

restaurants

Installation

Desktop installation

Power

AC 100-240V power supply

Extended Function

Support RFID/scan code/face payment,card reader, wireless charging, camera, printer

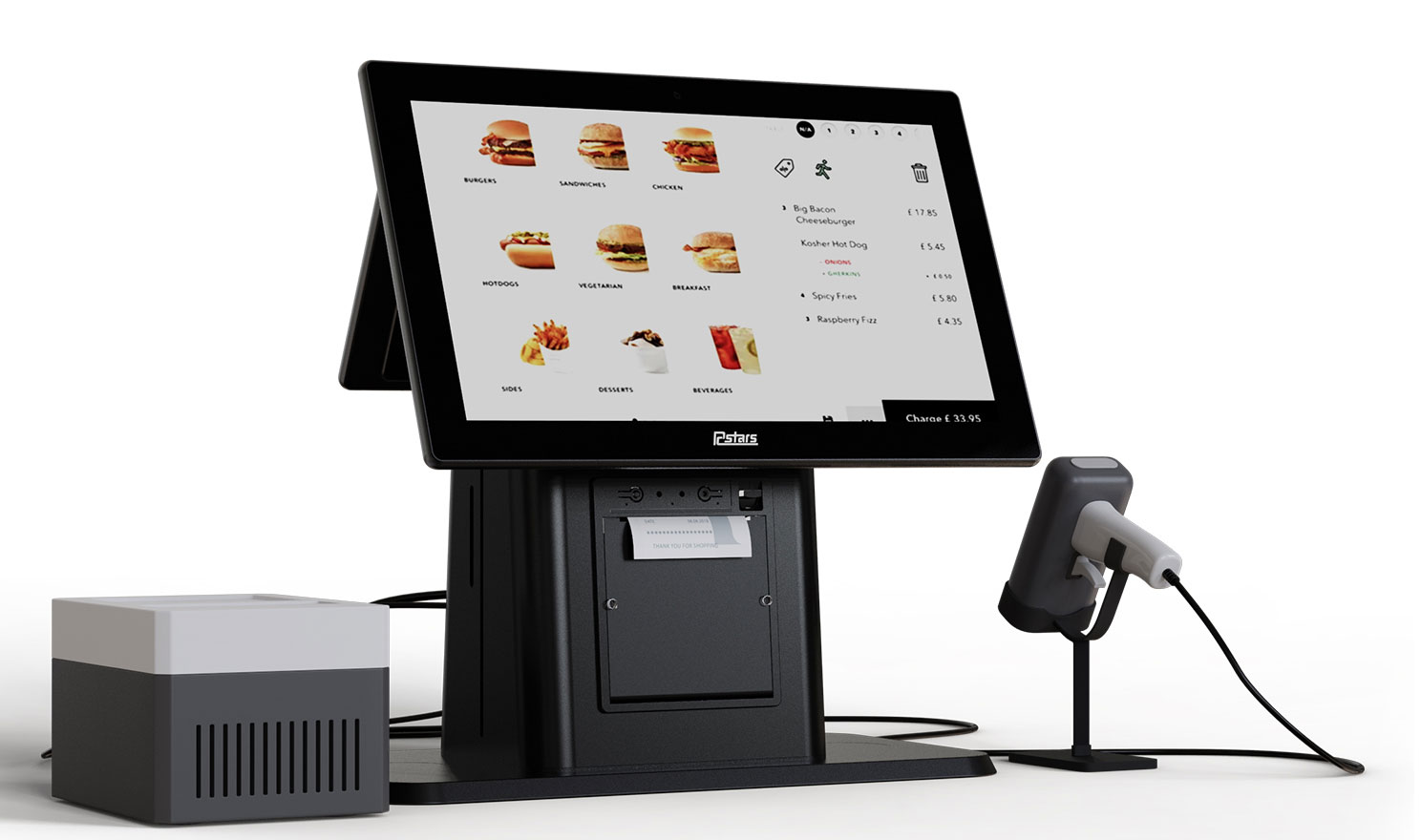

  • Desktop double-sided<br/>cash digital signage

    Desktop double-sided
    cash digital signage

    1. You can choose dual-display configuration for a better interactive experience. With its 1920×1080 main screen.
    2.Flexible Interaction, 10.1-inch touchable second screen, facilitates customer payment.
    3.The external USB interface can be connected to auxiliary equipment such as a code scanner gun, which is convenient and practical;

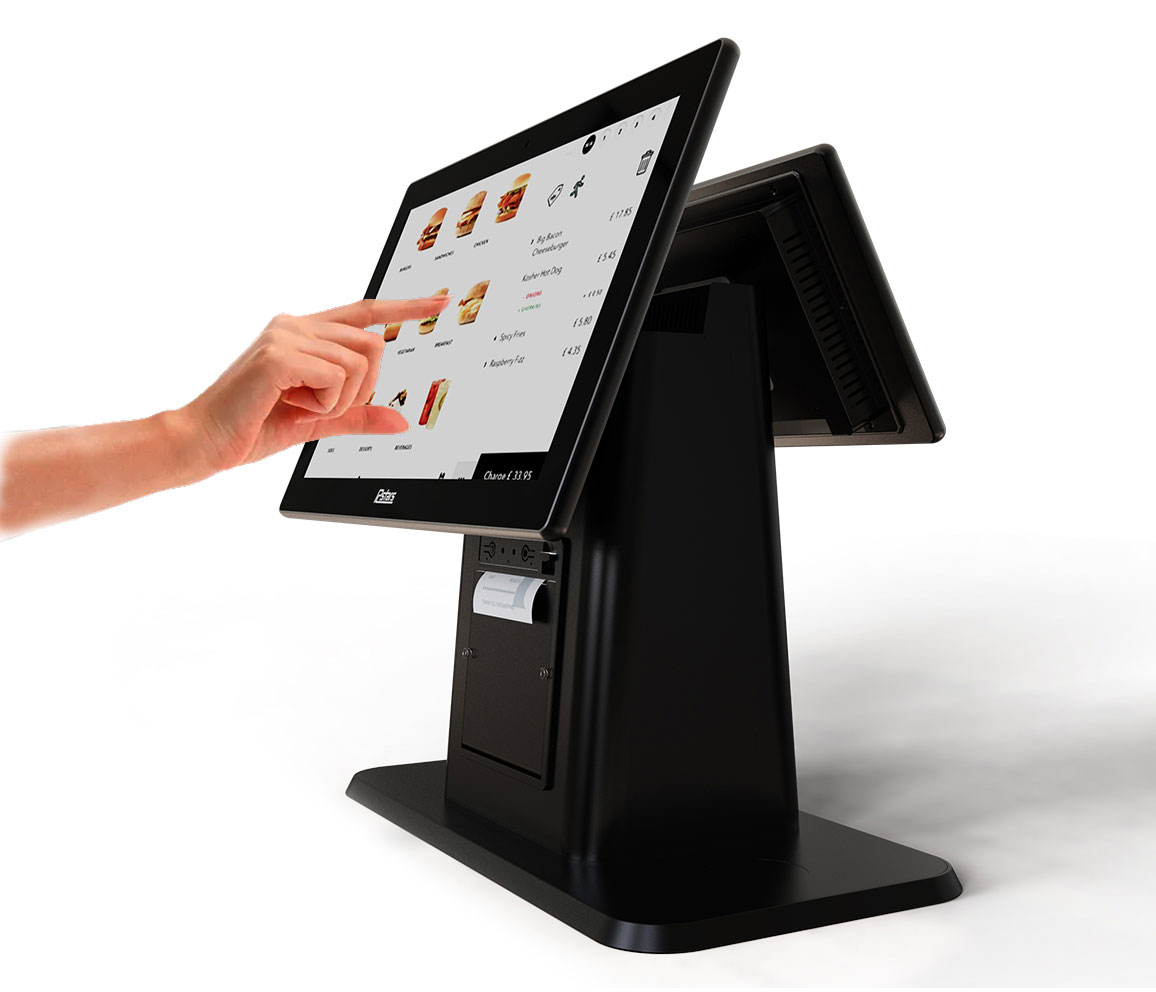

  • 10-point capacitive<br/>touch ordering

    10-point capacitive
    touch ordering

    4. Integrated design Lightweight and luxurious; embedded simple structure Stylish and convenient capacitive touch screen,accurate, fast, efficient and smooth
    5. 15.6-inch large screen, intuitive and easy to operate
    6. Highly integrated, unique line design, simple and efficient

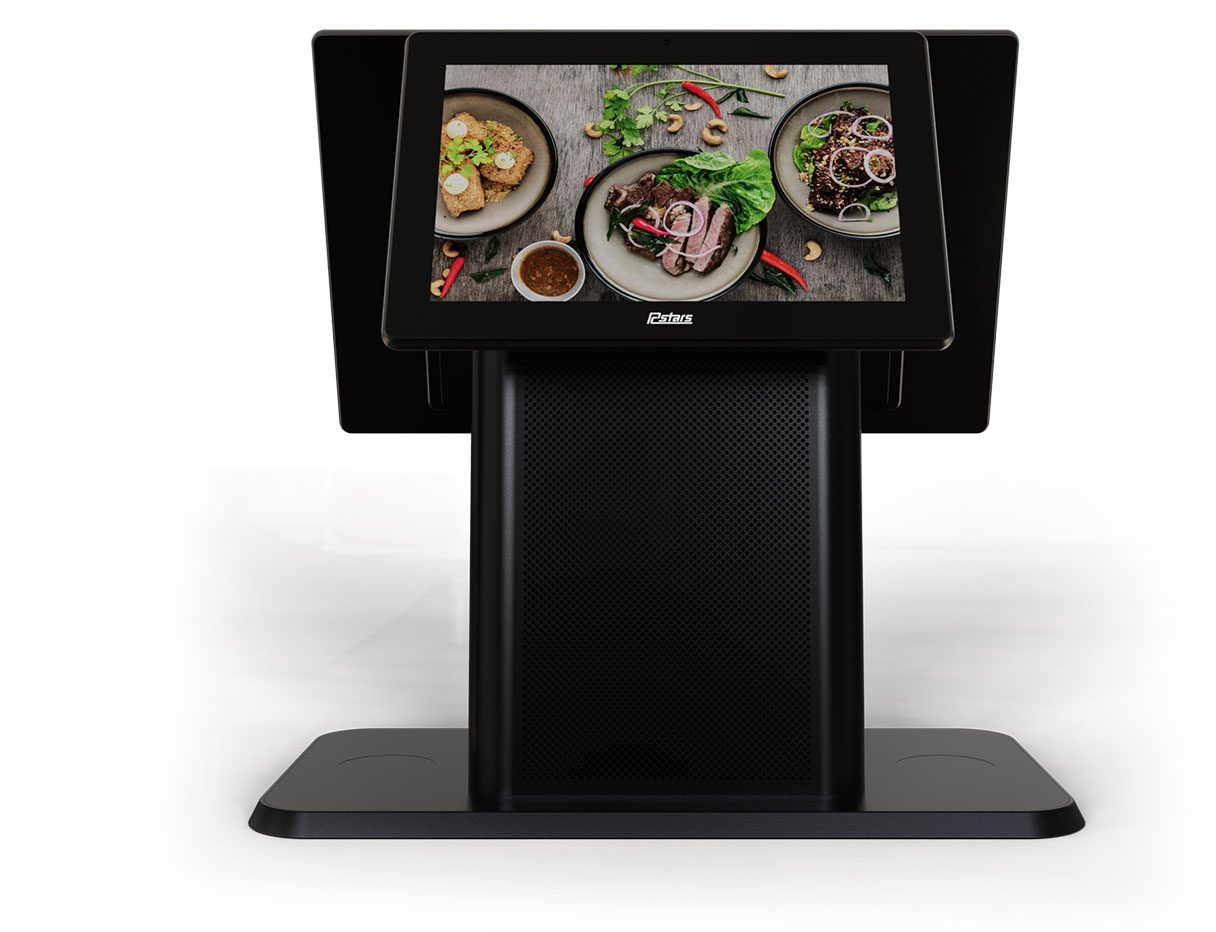

  • Convenient cashier<br/>ordering display

    Convenient cashier
    ordering display

    7. Full plane screen design, IP45 waterproof and dustproof level, safe and secure
    8. Easy to disassemble loading and unloading function, easy to remove and maintain, reduce maintenance costs
    9. Embedded printer, exquisite and compact

  • Scan code to<br/>pay cash register

    Scan code to
    pay cash register

    10.Independent research and development, source factory, industrial quality control;
    11.2-year after-sales warranty service for branded products;
    12.Cinema/retail/catering,and a variety of places to fully meet your needs;

10.1" 15.6"Desktop Double-sided cash all-in-one PC kiosk

Full Specification

SPECIFICATIONS

Panel Model

10.1inch TFT LED

Max Resolution

1280×800

Aspect Ratio

16:10

Pixel Pitch

0.1659×0.1659

Viewing Angle

85/85/85/85

Contrast Ratio

1300:1

Brightness

350cd/m²

Response Time

25ms

Display Area (mm)

216.96×135.60

Panel Size(mm)

241.86×161.6×5.2

Screen Weight

180g

Lamp Type

WLED

POWER

Power

DC 12V

SOUND

5Wx2pcs

MEDIA FORMATS

Video

H.264, MKV, WMV9, MPEG 1/2/4,HD Divx, Xvid, RM/RMVB;


BMP/PNG/GIF/JPEG

Audio

MP3,WMA,WAV,EAAC+, MP2 dec,
Vorbis (Ogg), AC3, FLAC, APE, BSAC

Scrolling Text

txt

ON-SCREEN DISPLAY LANGUAGES

On-screen display languages

English, French, German, Italian,
Polish, Russian, Simplified Chinese,
Spanish, Turkish, Arabic, Japanese,
Traditional Chinese etc.

Warranty

2 years warranty

Operating Humidity




CONNECTORS

USB 2.0

Video MPG AVI MP4, RM RMVB.T5).
Audio (MP3.1920x1080/1080x1920,WMA),
lmage (UPG, GIF,BMP,PNG)

SD


4G SIM (Optional)

LTE

DP


LAN

RJ45 Port, 10/100M Ethernet

WiFi

Built-in WiFi 802.11B/G/N

USB

USB 2.0 HOST (x2)

LAN

10/100M Ethernet (Network version screen only)

Wi-Fi

802.11 b/g/n (Network version screen only)





SPECIFICATIONS

Panel Model

15.6inch TFT LCD

Max Resolution

1920x1080

Aspect Ratio

16:09

Pixel Pitch

0.17925×0.17925

Viewing Angle

85/85/85/85

Contrast Ratio

700:1

Brightness

300cd/m²

Response Time

25ms

Display Area (mm)

344.16x193.59

Panel Size(mm)

359.5x223.8x3.2

Screen Weight

1.2KG

Lamp Type

WLED

POWER

Power

DC 12V

SOUND

5Wx2pcs

MEDIA FORMATS

Video

H.264, MKV, WMV9, MPEG 1/2/4,HD Divx, Xvid, RM/RMVB;


BMP/PNG/GIF/JPEG

Audio

MP3,WMA,WAV,EAAC+, MP2 dec,
Vorbis (Ogg), AC3, FLAC, APE, BSAC

Scrolling Text

txt

ON-SCREEN DISPLAY LANGUAGES

On-screen display languages

English, French, German, Italian,
Polish, Russian, Simplified Chinese,
Spanish, Turkish, Arabic, Japanese,
Traditional Chinese etc.

Warranty

2 years warranty

Operating Humidity




CONNECTORS

USB 2.0

Video MPG AVI MP4, RM RMVB.T5).
Audio (MP3.1920x1080/1080x1920,WMA),
lmage (UPG, GIF,BMP,PNG)

SD


4G SIM (Optional)

LTE

DP


LAN

RJ45 Port, 10/100M Ethernet

WiFi

Built-in WiFi 802.11B/G/N

USB

USB 2.0 HOST (x2)

LAN

10/100M Ethernet (Network version screen only)

Wi-Fi

802.11 b/g/n (Network version screen only)





RCS-156+101CRTPC-PCAP

RCS-156+101CRTPC-PCAP

Convenient cashier ordering display

10.1inch+15.6 inch

POS settlement display

New retail smart terminal

Catering smart cash register

Black
