Product Features
Android
Plug&Play
Windows
LCD Monitor
Machanical
Metal Material
Support LOGO printing
Glass
Tempered Glass Protection
Touch
Responsive 10-points PCAP touch Optional
Can be used with Built-in play box
Power
AC 100-240V
Application
Self-service Terminal
Installation
Floor installation,horizontal installation.

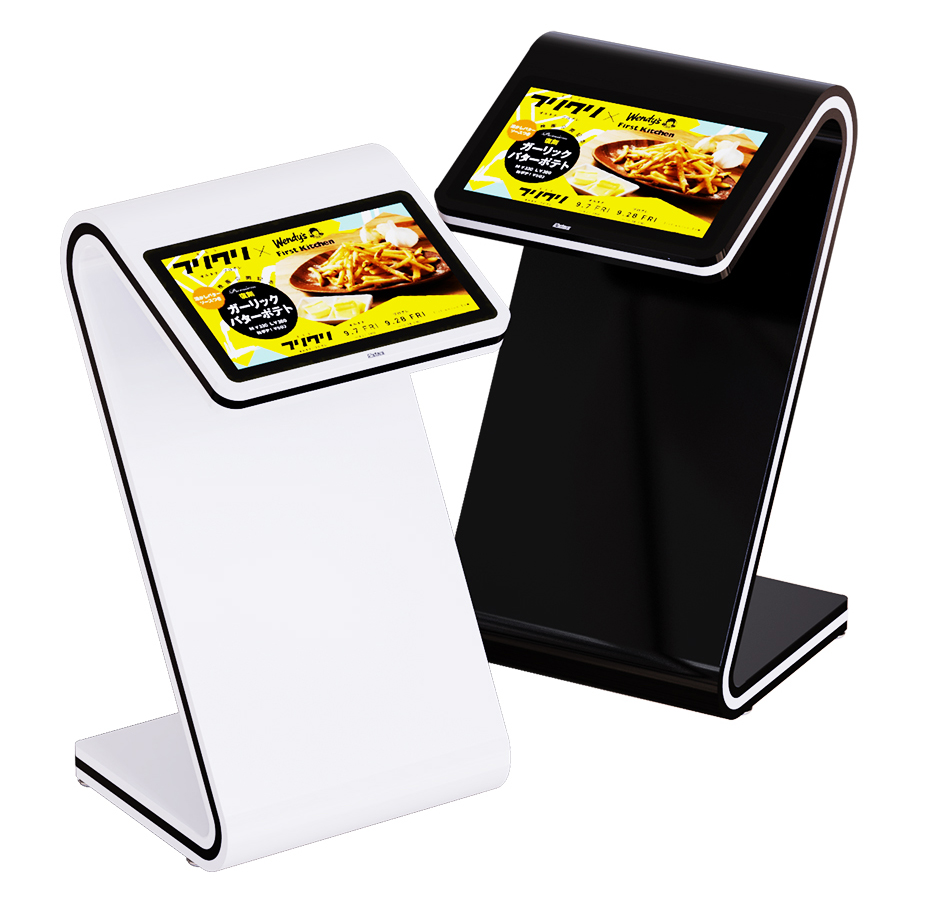

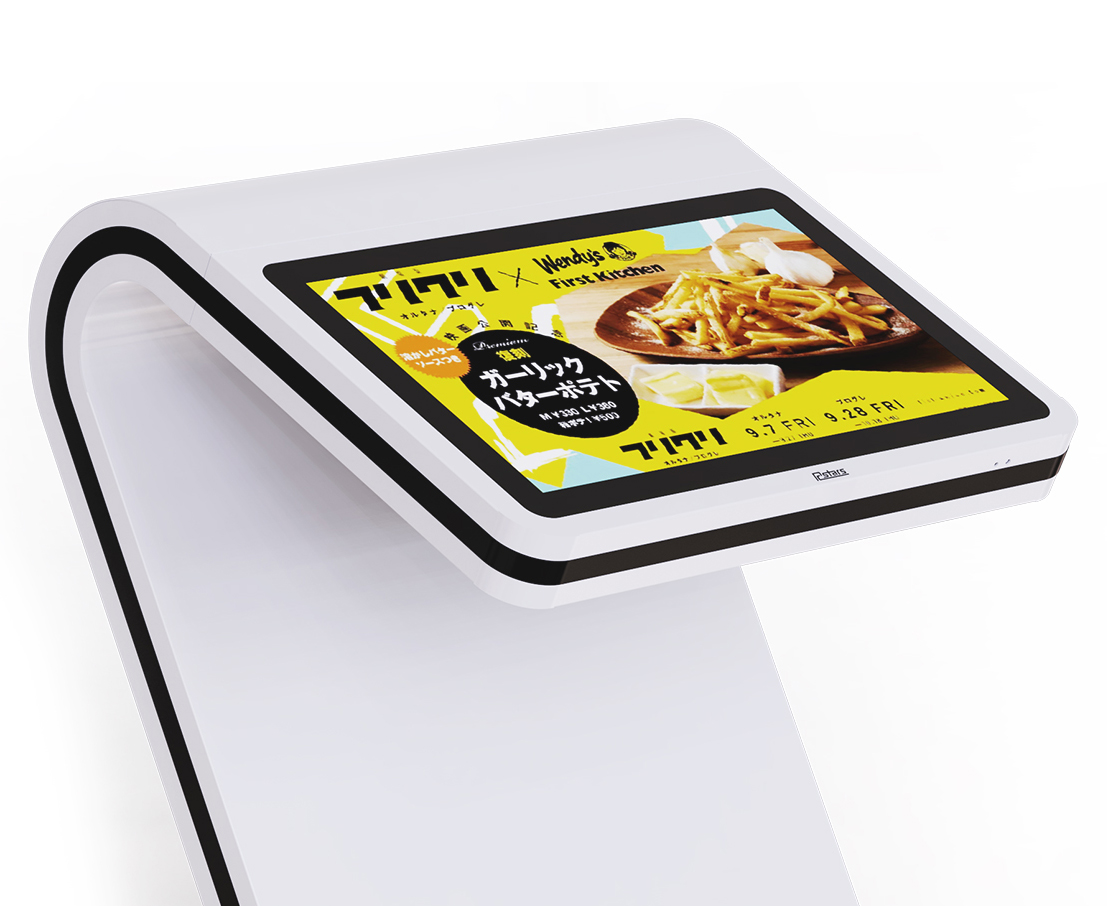

S shape appearance
Ultra-thin body design,bring you brand-new thin feeling experience.
Real 1080P high resolution
Remote control or touch screen

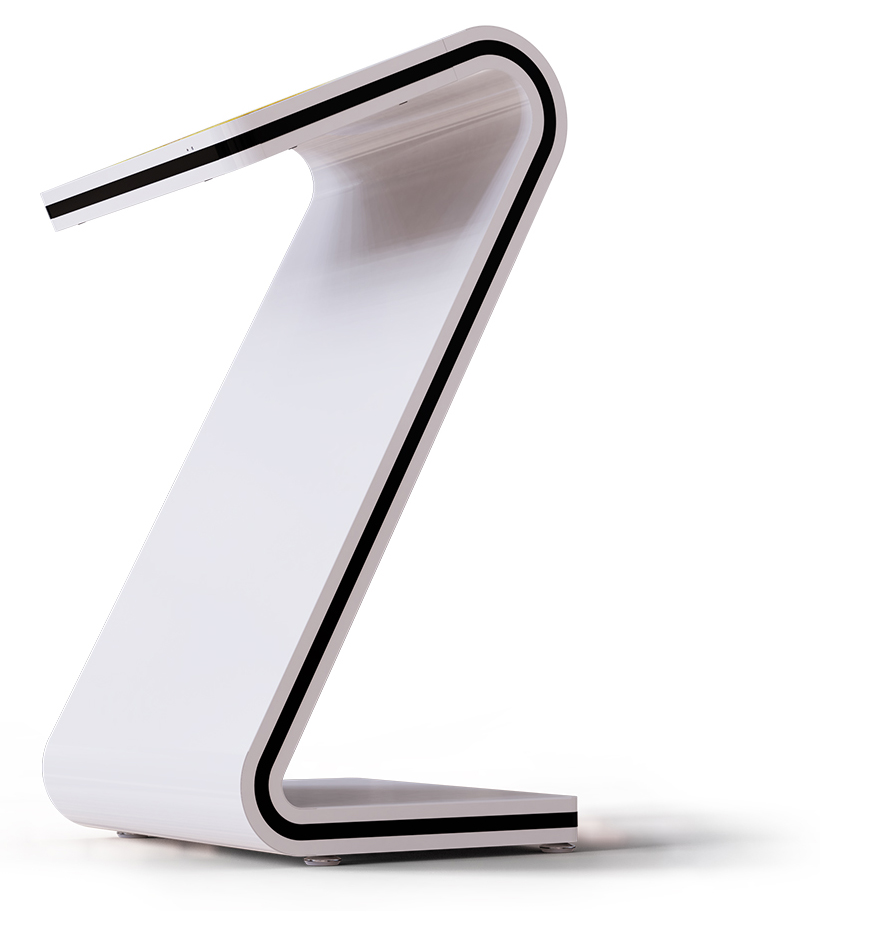

Unique design
Aluminum frame with stronger inner structure.
Durable powered coating, no scrach protected
Explosion-proof, sensitive technology for touch
Android Network Display
a. Android 7.1/8.1/9.0 operating system optional
b. RK 3288 / RK 3399 optional
c. 2GB/4GB RAM (DDR3) optional
d. 8GB/16GB/32GB/64GB flflash optional
e. 4G(optional)/WLAN/WiFi network connection
f. 802.11 B/G/N Internal WiFi
g. Portrait/landscape display mode
h. 1080P display output
i. Remote management software (CMS) optional
Plug And Play Advertising Display
a. Support picture, music and video to 1080P
b. Support SD/USB inputs
c. Support SD card plug and play automatically
d. USB update function: update documents by USB drive to SD card
e. Support connecting with media player box/PC
f. Playlist function: auto play the designated fifile at the specifific date
g. Timer function: 5 groups timers to turn on/of at the designated time
All-in-one Windows Display
a. CPU: Intel® Celeron® Processor J1900 /Intel® Core®
Processor I3/I5/I7
b. Chipset: Intel Bay trail SOC /Intel® H310 Chipset
c. System memory: 4GB/8GB RAM, 120GB/240GB SSD
d. Input connectors: VGA/USB/RJ45/Audio
e. Operating system: Windows 7/8/10, Linux
f. Preinstall Intel OS service optional
LCD Monitor
a. Professional design for 7-24 hours operation
b. DP/VGA inputs
c. Full HD resolution supported
d. Support connecting with media player box/PC
Full Specification
SPECIFICATIONS
Panel Model
21.5inch TFT LCD
Max Resolution
1920x1080
Aspect Ratio
16:09
Pixel Pitch
0.24795×0.24795
Viewing Angle
89/89/89/89
Contrast Ratio
1000:1
Brightness
250cd/m²
Response Time
14ms
Display Area (mm)
476.064x267.786
Panel Size(mm)
495.6x292.2x10.7
Screen Weight
2KG
Lamp Type
WLED
POWER
Power
DC 12V
SOUND
5Wx2pcs
MEDIA FORMATS
Video
H.264, MKV, WMV9, MPEG 1/2/4,HD Divx, Xvid, RM/RMVB;
BMP/PNG/GIF/JPEG
Audio
MP3,WMA,WAV,EAAC+, MP2 dec,
Vorbis (Ogg), AC3, FLAC, APE, BSAC
Scrolling Text
txt
ON-SCREEN DISPLAY LANGUAGES
On-screen display languages
English, French, German, Italian,
Polish, Russian, Simplified Chinese,
Spanish, Turkish, Arabic, Japanese,
Traditional Chinese etc.
Warranty
2 years warranty
Operating Humidity
CONNECTORS
USB 2.0
Video MPG AVI MP4, RM RMVB.T5).
Audio (MP3.1920x1080/1080x1920,WMA),
lmage (UPG, GIF,BMP,PNG)
SD
4G SIM (Optional)
LTE
DP
LAN
RJ45 Port, 10/100M Ethernet
WiFi
Built-in WiFi 802.11B/G/N
USB
USB 2.0 HOST (x2)
LAN
10/100M Ethernet (Network version screen only)
Wi-Fi
802.11 b/g/n (Network version screen only)
220SS
Horizontal shopping guide query
21.5 inch
commercial all-in-one machine
self-service inquiry
S-type network terminal
Black
White
