Product features
Android
Plug & Play
Windows
LCD Monitor
Machanical
Iphone Type With Round Frame Silver Color, Aluminium Metal
Glass
Tempered Glass Protection
Touch
Responsive 10-points PCAP touch Optional
Color
black
High Brightness
Normal/500nits optional
Optional size
15.6/21.5 inch
Installation
Standing-mounted
Power
AC 100-240V

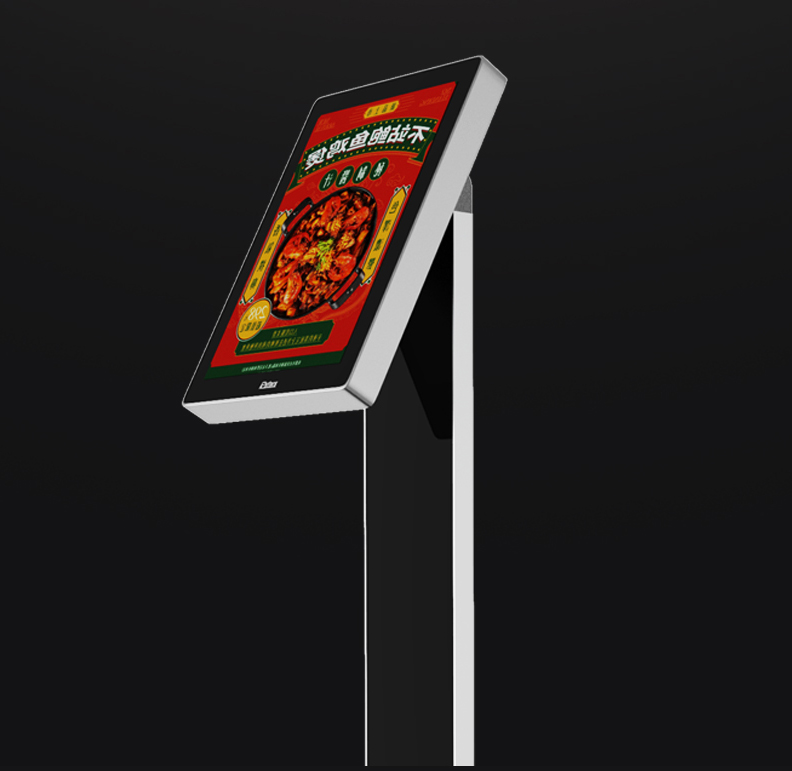

Lcd Advertising Display
With Bracket
Managing software: We can offer professional managing software. Or you may use your own app.
Playlist editor:Multimedia contents can play by playlist mode
Display layout:You can design the contents layout freely.
Scheduling playback: Publish task by calendar, then appointed terminal/terminals would play accordingly.

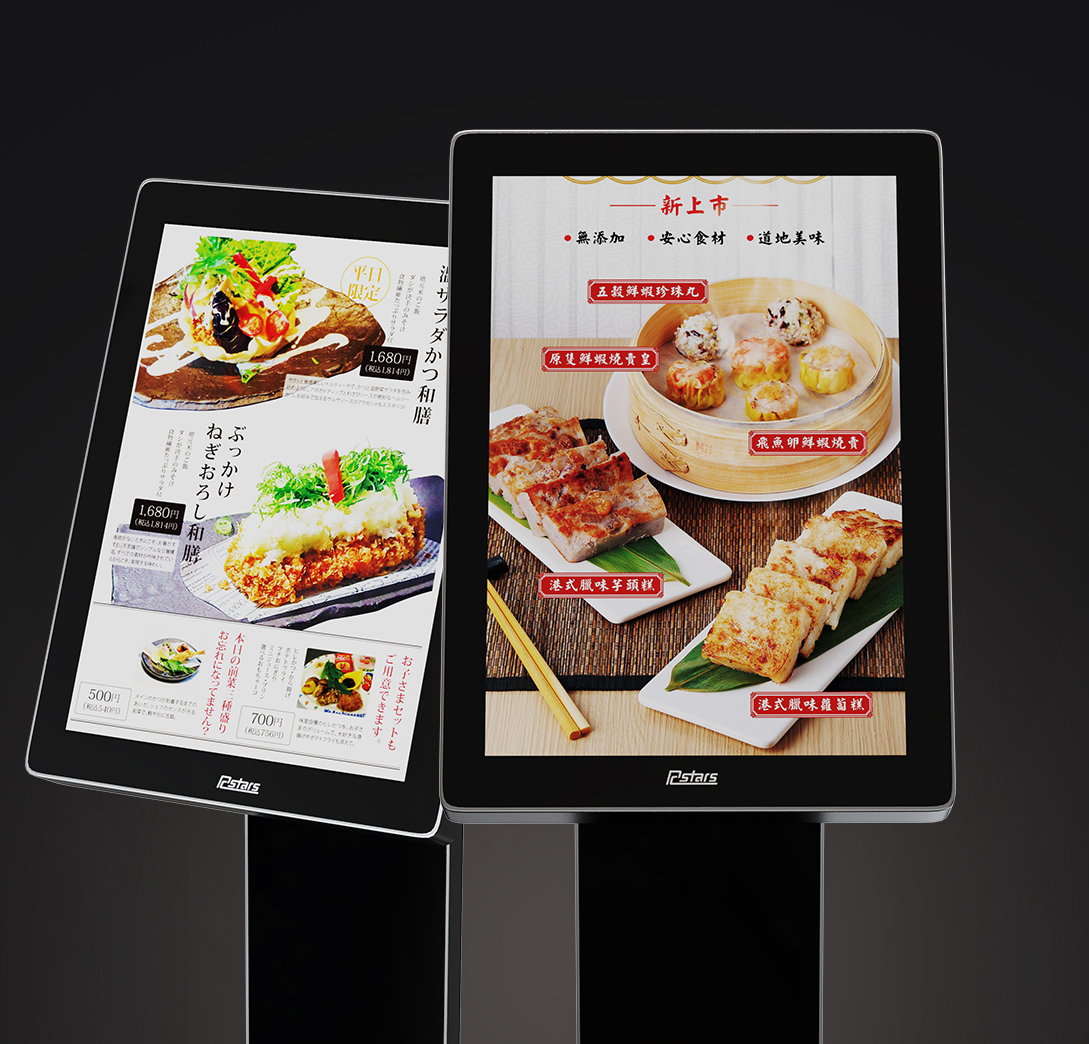

Metal housing with
front tempered glass
Multi-languages:Support English, French, German, Italian, Swedish, Denmark, Portuguese, Spanish, Japanese....etc
Multizone display:Video, photo, text, ppt, word, excel, flash, rss, wheather, clock, web can be display on different areas.
Timing function: Set time power on /off and automatically display and loop, 7days and 24 hours no manual operation.
Protection plate:Files on SD card can be protected by protection plate from alteration in mischief.
Android Network Display
a. Android 7.1/8.1/9.0 operating system optional
b. RK 3288 / RK 3399 optional
c. 2GB/4GB RAM (DDR3) optional
d. 8GB/16GB/32GB/64GB flflash optional
e. 4G(optional)/WLAN/WiFi network connection
f. 802.11 B/G/N Internal WiFi
g. Portrait/landscape display mode
h. 1080P display output
i. Remote management software (CMS) optional
Plug And Play Advertising Display
a. Support picture, music and video to 1080P
b. Support SD/USB inputs
c. Support SD card plug and play automatically
d. USB update function: update documents by USB drive to SD card
e. Support connecting with media player box/PC
f. Playlist function: auto play the designated fifile at the specifific date
g. Timer function: 5 groups timers to turn on/offff at the designated time
All-in-one Windows Display
a. CPU: Intel® Celeron® Processor J1900 /Intel® Core®
Processor I3/I5/I7
b. Chipset: Intel Bay trail SOC /Intel® H310 Chipset
c. System memory: 4GB/8GB RAM, 120GB/240GB SSD
d. Input connectors: VGA/USB/RJ45/Audio
e. Operating system: Windows 7/8/10, Linux
f. Preinstall Intel OS service optional
LCD Monitor
a. Professional design for 7-24 hours operation
b. DP/VGA inputs
c. Full HD resolution supported
d. Support connecting with media player box/PC
Full Specification
SPECIFICATIONS
Panel Model
15.6inch TFT LCD
Max Resolution
1920x1080
Aspect Ratio
16:09
Pixel Pitch
0.17925×0.17925
Viewing Angle
85/85/85/85
Contrast Ratio
700:1
Brightness
300cd/m²
Response Time
25ms
Display Area (mm)
344.16x193.59
Panel Size(mm)
359.5x223.8x3.2
Screen Weight
1.2KG
Lamp Type
WLED
POWER
Power
DC 12V
SOUND
5Wx2pcs
MEDIA FORMATS
Video
H.264, MKV, WMV9, MPEG 1/2/4,HD Divx, Xvid, RM/RMVB;
BMP/PNG/GIF/JPEG
Audio
MP3,WMA,WAV,EAAC+, MP2 dec,
Vorbis (Ogg), AC3, FLAC, APE, BSAC
Scrolling Text
txt
ON-SCREEN DISPLAY LANGUAGES
On-screen display languages
English, French, German, Italian,
Polish, Russian, Simplified Chinese,
Spanish, Turkish, Arabic, Japanese,
Traditional Chinese etc.
Warranty
2 years warranty
Operating Humidity
CONNECTORS
USB 2.0
Video MPG AVI MP4, RM RMVB.T5).
Audio (MP3.1920x1080/1080x1920,WMA),
lmage (UPG, GIF,BMP,PNG)
SD
4G SIM (Optional)
LTE
DP
LAN
RJ45 Port, 10/100M Ethernet
WiFi
Built-in WiFi 802.11B/G/N
USB
USB 2.0 HOST (x2)
LAN
10/100M Ethernet (Network version screen only)
Wi-Fi
802.11 b/g/n (Network version screen only)
