Product Features
Android
Plug & Play
Windows
LCD Monitor
Machanical
Metal case+Ultra-thin Design With 40mm Thickness
High Brightness
Normal/500nits-4000 optional
Glass
Tempered Glass Protection
Color
white/black optional
Touch
Capacitive touch/IR touch screen optional
Optional size
21.5-75 inch
Power
AC 100-240V
Extended Function
Camera Optional
Landscape display mode
1.iphone design totem with VGA input.
2.Multi-touch,human-computer interaction Multi-point infrared touch.
3.PCAP Touch Screen / infrared Touch Screen (optional)

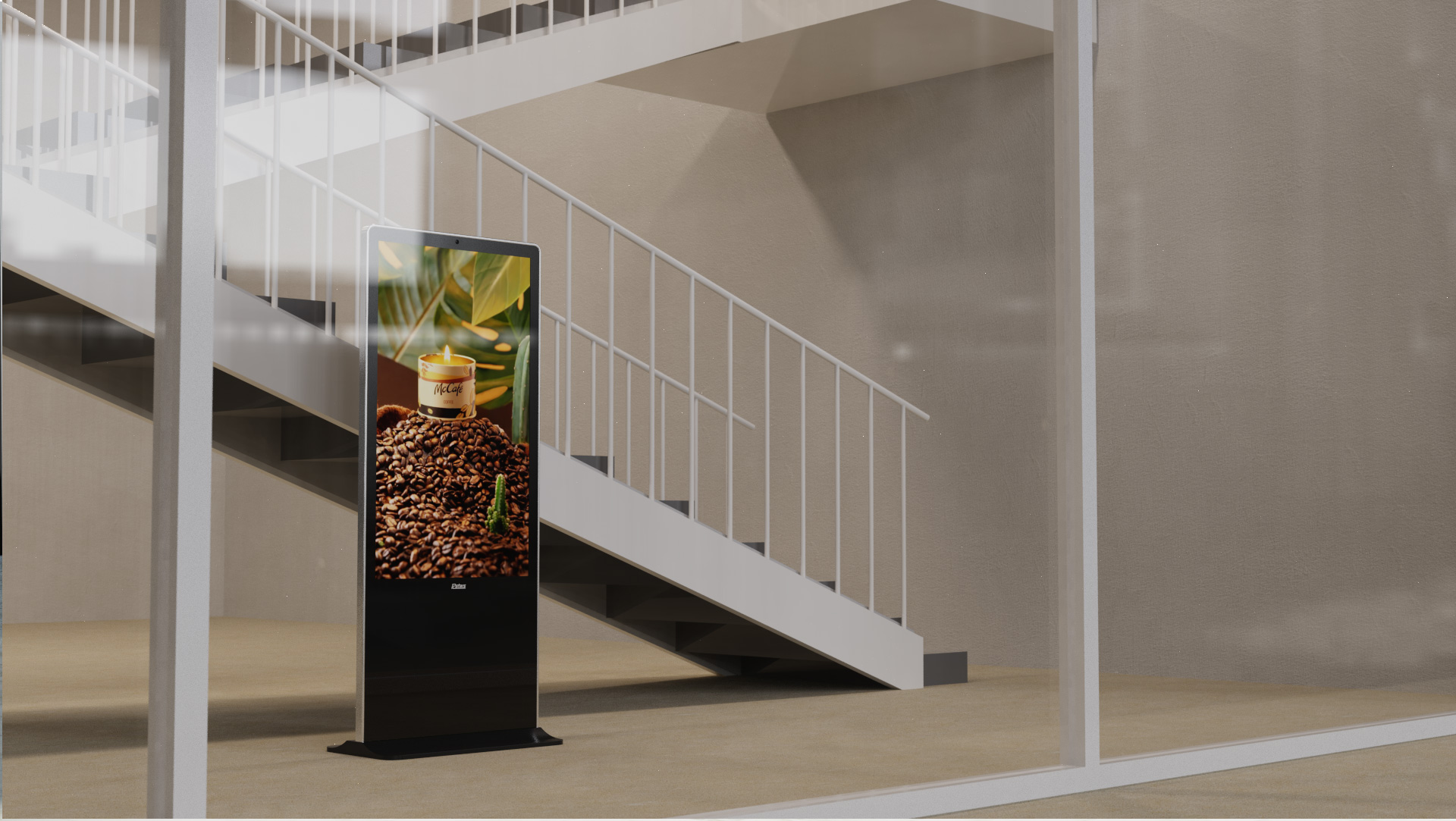

Free standing
4.Secure and steady base, bolted on the floor.
5.Wheels optional, easy to move.
6.Designed for: • POS• Hotel• Self-service Terminal• Public Information Display• Hospitality• In-vehicles And Transportation
Android Network Display
a. Android 7.1/8.1/9.0 operating system optional
b. RK 3288 / RK 3399 optional
c. 2GB/4GB RAM (DDR3) optional
d. 8GB/16GB/32GB/64GB flflash optional
e. 4G(optional)/WLAN/WiFi network connection
f. 802.11 B/G/N Internal WiFi
g. Portrait/landscape display mode
h. 1080P display output
i. Remote management software (CMS) optional
Plug And Play Advertising Display
a. Support picture, music and video to 1080P
b. Support SD/USB inputs
c. Support SD card plug and play automatically
d. USB update function: update documents by USB drive to SD card
e. Support connecting with media player box/PC by
f. Playlist function: auto play the designated fifile at the specifific date
g. Timer function: 5 groups timers to turn on/offff at the designated time
All-in-one Windows Display
a. CPU: Intel® Celeron® Processor J1900 /Intel® Core®
Processor I3/I5/I7
b. Chipset: Intel Bay trail SOC /Intel® H310 Chipset
c. System memory: 4GB/8GB RAM, 120GB/240GB SSD
d. Input connectors: VGA/USB/RJ45/Audio
e. Operating system: Windows 7/8/10, Linux
f. Preinstall Intel OS service optional
LCD Monitor
a. Professional design for 7-24 hours operation
b. DP/VGA inputs
c. Full HD resolution supported
d. Support connecting with media player box/PC
Full Specification
SPECIFICATIONS
Panel Model
21.5inch TFT LCD
Max Resolution
1920x1080
Aspect Ratio
16:09
Pixel Pitch
0.24795×0.24795
Viewing Angle
89/89/89/89
Contrast Ratio
1000:1
Brightness
250cd/m²
Response Time
14ms
Display Area (mm)
476.064x267.786
Panel Size(mm)
495.6x292.2x10.7
Screen Weight
2KG
Lamp Type
WLED
POWER
Power
DC 12V
SOUND
5Wx2pcs
MEDIA FORMATS
Video
H.264, MKV, WMV9, MPEG 1/2/4,HD Divx, Xvid, RM/RMVB;
BMP/PNG/GIF/JPEG
Audio
MP3,WMA,WAV,EAAC+, MP2 dec,
Vorbis (Ogg), AC3, FLAC, APE, BSAC
Scrolling Text
txt
ON-SCREEN DISPLAY LANGUAGES
On-screen display languages
English, French, German, Italian,
Polish, Russian, Simplified Chinese,
Spanish, Turkish, Arabic, Japanese,
Traditional Chinese etc.
Warranty
2 years warranty
Operating Humidity
CONNECTORS
USB 2.0
Video MPG AVI MP4, RM RMVB.T5).
Audio (MP3.1920x1080/1080x1920,WMA),
lmage (UPG, GIF,BMP,PNG)
SD
4G SIM (Optional)
LTE
DP
LAN
RJ45 Port, 10/100M Ethernet
WiFi
Built-in WiFi 802.11B/G/N
USB
USB 2.0 HOST (x2)
LAN
10/100M Ethernet (Network version screen only)
Wi-Fi
802.11 b/g/n (Network version screen only)
SPECIFICATIONS
Panel Model
32inch TFT LCD
Max Resolution
1920x1080
Aspect Ratio
16:09
Pixel Pitch
0.36375x0.36375
Viewing Angle
89/89/89/89
Contrast Ratio
1400:1
Brightness
500cd/m²
Response Time
6.5ms
Display Area (mm)
698.4x392.85
Panel Size(mm)
727.4x429x227
Screen Weight
4.8KG
Lamp Type
WLED
POWER
Power
AC100-240V
SOUND
10Wx2pcs
MEDIA FORMATS
Video
H.264, MKV, WMV9, MPEG 1/2/4,HD Divx, Xvid, RM/RMVB;
BMP/PNG/GIF/JPEG
Audio
MP3,WMA,WAV,EAAC+, MP2 dec,
Vorbis (Ogg), AC3, FLAC, APE, BSAC
Scrolling Text
txt
ON-SCREEN DISPLAY LANGUAGES
On-screen display languages
English, French, German, Italian,
Polish, Russian, Simplified Chinese,
Spanish, Turkish, Arabic, Japanese,
Traditional Chinese etc.
Warranty
2 years warranty
Operating Humidity
CONNECTORS
USB 2.0
Video MPG AVI MP4, RM RMVB.T5).
Audio (MP3.1920x1080/1080x1920,WMA),
lmage (UPG, GIF,BMP,PNG)
SD
4G SIM (Optional)
LTE
DP
LAN
RJ45 Port, 10/100M Ethernet
WiFi
Built-in WiFi 802.11B/G/N
USB
USB 2.0 HOST (x2)
LAN
10/100M Ethernet (Network version screen only)
Wi-Fi
802.11 b/g/n (Network version screen only)
SPECIFICATIONS
Panel Model
43inch TFT LED
Max Resolution
1920x1080
Aspect Ratio
16:09
Pixel Pitch
0.4903×0.4903
Viewing Angle
89/89/89/89
Contrast Ratio
1200:1
Brightness
500cd/m²
Response Time
26ms
Display Area (mm)
941.184x529.416mm
Panel Size(mm)
973x565.8x29mm
Screen Weight
11Kg
Lamp Type
WLED
POWER
Power
AC 100-240V,50-60 Hz
SOUND
2 x 10W
MEDIA FORMATS
Video
H.264, MKV, WMV9, MPEG 1/2/4,HD Divx, Xvid, RM/RMVB;
BMP/PNG/GIF/JPEG
Audio
MP3,WMA,WAV,EAAC+, MP2 dec,
Vorbis (Ogg), AC3, FLAC, APE, BSAC
Scrolling Text
txt
ON-SCREEN DISPLAY LANGUAGES
On-screen display languages
English, French, German, Italian,
Polish, Russian, Simplified Chinese,
Spanish, Turkish, Arabic, Japanese,
Traditional Chinese etc.
Warranty
2 years warranty
Operating Humidity
CONNECTORS
USB 2.0
Video MPG AVI MP4, RM RMVB.T5).
Audio (MP3.1920x1080/1080x1920,WMA),
lmage (UPG, GIF,BMP,PNG)
SD
4G SIM (Optional)
LTE
DP
LAN
RJ45 Port, 10/100M Ethernet
WiFi
Built-in WiFi 802.11B/G/N
USB
USB 2.0 HOST (x2)
LAN
10/100M Ethernet (Network version screen only)
Wi-Fi
802.11 b/g/n (Network version screen only)
SPECIFICATIONS
Panel Model
49inch TFT LCD
Max Resolution
1920x1080
Aspect Ratio
16:09
Pixel Pitch
0.53025*0.53025
Viewing Angle
89/89/89/89
Contrast Ratio
1000:1
Brightness
500cd/m²
Response Time
12ms
Display Area (mm)
1073.78x604
Panel Size(mm)
1096.2x632.5x29
Screen Weight
18KG
Lamp Type
WLED
POWER
Power
AC100-240V
SOUND
10Wx2pcs
MEDIA FORMATS
Video
H.264, MKV, WMV9, MPEG 1/2/4,HD Divx, Xvid, RM/RMVB;
BMP/PNG/GIF/JPEG
Audio
MP3,WMA,WAV,EAAC+, MP2 dec,
Vorbis (Ogg), AC3, FLAC, APE, BSAC
Scrolling Text
txt
ON-SCREEN DISPLAY LANGUAGES
On-screen display languages
English, French, German, Italian,
Polish, Russian, Simplified Chinese,
Spanish, Turkish, Arabic, Japanese,
Traditional Chinese etc.
Warranty
2 years warranty
Operating Humidity
CONNECTORS
USB 2.0
Video MPG AVI MP4, RM RMVB.T5).
Audio (MP3.1920x1080/1080x1920,WMA),
lmage (UPG, GIF,BMP,PNG)
SD
4G SIM (Optional)
LTE
DP
LAN
RJ45 Port, 10/100M Ethernet
WiFi
Built-in WiFi 802.11B/G/N
USB
USB 2.0 HOST (x2)
LAN
10/100M Ethernet (Network version screen only)
Wi-Fi
802.11 b/g/n (Network version screen only)
SPECIFICATIONS
Panel Model
55inch TFT LCD
Max Resolution
1920x1080
Aspect Ratio
16:09
Pixel Pitch
0.63x0.63
Viewing Angle
89/89/89/89
Contrast Ratio
1400:1
Brightness
500cd/m²
Response Time
6ms
Display Area (mm)
1209.6x680.4
Panel Size(mm)
1244.6x720.9x27
Screen Weight
17.5KG
Lamp Type
WLED
POWER
Power
AC100-240V
SOUND
10Wx2pcs
MEDIA FORMATS
Video
H.264, MKV, WMV9, MPEG 1/2/4,HD Divx, Xvid, RM/RMVB;
BMP/PNG/GIF/JPEG
Audio
MP3,WMA,WAV,EAAC+, MP2 dec,
Vorbis (Ogg), AC3, FLAC, APE, BSAC
Scrolling Text
txt
ON-SCREEN DISPLAY LANGUAGES
On-screen display languages
English, French, German, Italian,
Polish, Russian, Simplified Chinese,
Spanish, Turkish, Arabic, Japanese,
Traditional Chinese etc.
Warranty
2 years warranty
Operating Humidity
CONNECTORS
USB 2.0
Video MPG AVI MP4, RM RMVB.T5).
Audio (MP3.1920x1080/1080x1920,WMA),
lmage (UPG, GIF,BMP,PNG)
SD
4G SIM (Optional)
LTE
DP
LAN
RJ45 Port, 10/100M Ethernet
WiFi
Built-in WiFi 802.11B/G/N
USB
USB 2.0 HOST (x2)
LAN
10/100M Ethernet (Network version screen only)
Wi-Fi
802.11 b/g/n (Network version screen only)
SPECIFICATIONS
Panel Model
65 inch TFT LED
Max Resolution
3840x2160
Aspect Ratio
16:09
Pixel Pitch
0.372x0.372
Viewing Angle
89/89/89/89
Contrast Ratio
1400:1
Brightness
500cd/m²
Response Time
13ms
Display Area (mm)
1428.48x803.52
Panel Size(mm)
1459.2x830x16
Screen Weight
22.7KG
Lamp Type
WLED
POWER
Power
AC100-240V
SOUND
10Wx2pcs
MEDIA FORMATS
Video
H.264, MKV, WMV9, MPEG 1/2/4,HD Divx, Xvid, RM/RMVB;
BMP/PNG/GIF/JPEG
Audio
MP3,WMA,WAV,EAAC+, MP2 dec,
Vorbis (Ogg), AC3, FLAC, APE, BSAC
Scrolling Text
txt
ON-SCREEN DISPLAY LANGUAGES
On-screen display languages
English, French, German, Italian,
Polish, Russian, Simplified Chinese,
Spanish, Turkish, Arabic, Japanese,
Traditional Chinese etc.
Warranty
2 years warranty
Operating Humidity
CONNECTORS
USB 2.0
Video MPG AVI MP4, RM RMVB.T5).
Audio (MP3.1920x1080/1080x1920,WMA),
lmage (UPG, GIF,BMP,PNG)
SD
4G SIM (Optional)
LTE
DP
LAN
RJ45 Port, 10/100M Ethernet
WiFi
Built-in WiFi 802.11B/G/N
USB
USB 2.0 HOST (x2)
LAN
10/100M Ethernet (Network version screen only)
Wi-Fi
802.11 b/g/n (Network version screen only)
SPECIFICATIONS
Panel Model
75inch TFT LCD
Max Resolution
3840x2160
Aspect Ratio
16:09
Pixel Pitch
0.4296x0.4296
Viewing Angle
89/89/89/89
Contrast Ratio
1200:1
Brightness
500cd/m²
Response Time
8ms
Display Area (mm)
1649.66x927.936
Panel Size(mm)
1675.2x953.6x11.9
Screen Weight
36KG
Lamp Type
WLED
POWER
Power
AC100-240V
SOUND
10Wx2pcs
MEDIA FORMATS
Video
H.264, MKV, WMV9, MPEG 1/2/4,HD Divx, Xvid, RM/RMVB;
BMP/PNG/GIF/JPEG
Audio
MP3,WMA,WAV,EAAC+, MP2 dec,
Vorbis (Ogg), AC3, FLAC, APE, BSAC
Scrolling Text
txt
ON-SCREEN DISPLAY LANGUAGES
On-screen display languages
English, French, German, Italian,
Polish, Russian, Simplified Chinese,
Spanish, Turkish, Arabic, Japanese,
Traditional Chinese etc.
Warranty
2 years warranty
Operating Humidity
CONNECTORS
USB 2.0
Video MPG AVI MP4, RM RMVB.T5).
Audio (MP3.1920x1080/1080x1920,WMA),
lmage (UPG, GIF,BMP,PNG)
SD
4G SIM (Optional)
LTE
DP
LAN
RJ45 Port, 10/100M Ethernet
WiFi
Built-in WiFi 802.11B/G/N
USB
USB 2.0 HOST (x2)
LAN
10/100M Ethernet (Network version screen only)
Wi-Fi
802.11 b/g/n (Network version screen only)

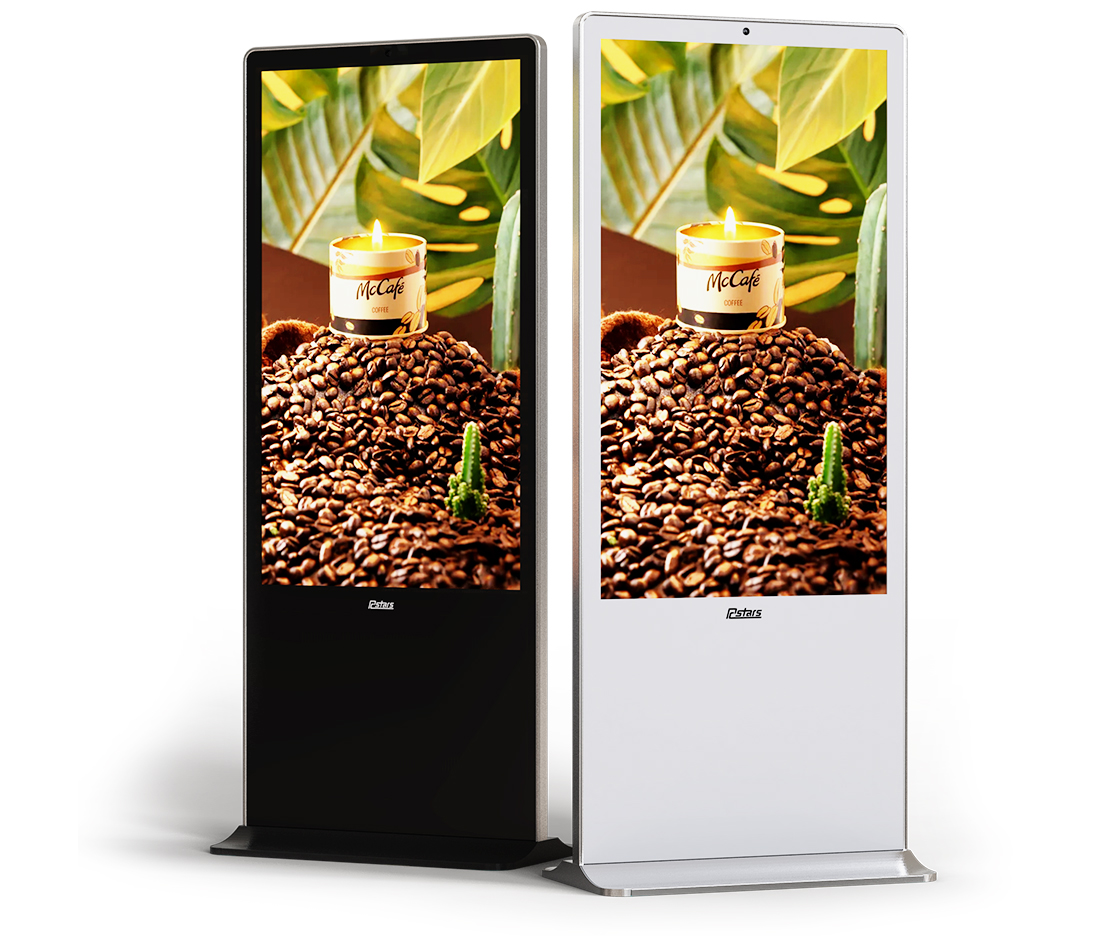

RCS-LB series
Iphone Design Free standing Kiosk
22 -75inch
Black/White optional
Wheel optional
Book holders optional
Black
White
