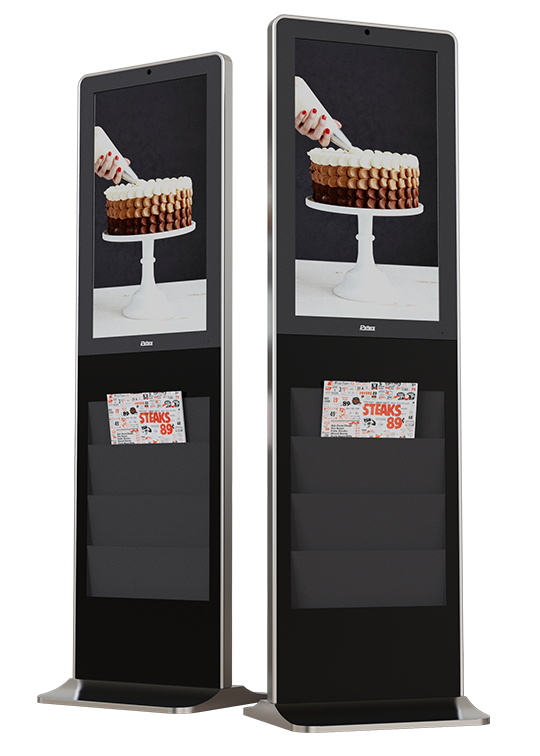

Iphone Design Free standing Kiosk RCS-430LBAZ

RCS-430LBAZ

Product features

AndroidAndroid

Plug & PlayPlug & Play

WindowsWindows

LCD MonitorLCD Monitor

Machanical

Metal case+Ultra-thin Design With 40mm Thickness

High Brightness

Normal/500nits-4000 optional

Glass

Tempered Glass Protection

Color

Golden

Touch

Capacitive touch/IR touch screen optional

Optional size

43inch

Power

AC 100-240V

Extended Function

Camera Optional

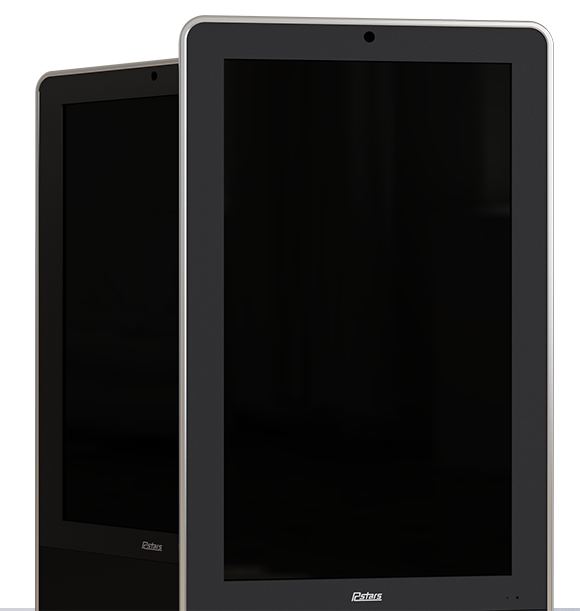

  • Landscape display mode

    Landscape display mode

    1.43”/55” iphone design totem with VGA input.
    2.Multi-touch,human-computer interaction Multi-point infrared touch.
    3.PCAP Touch Screen / infrared Touch Screen (optional)

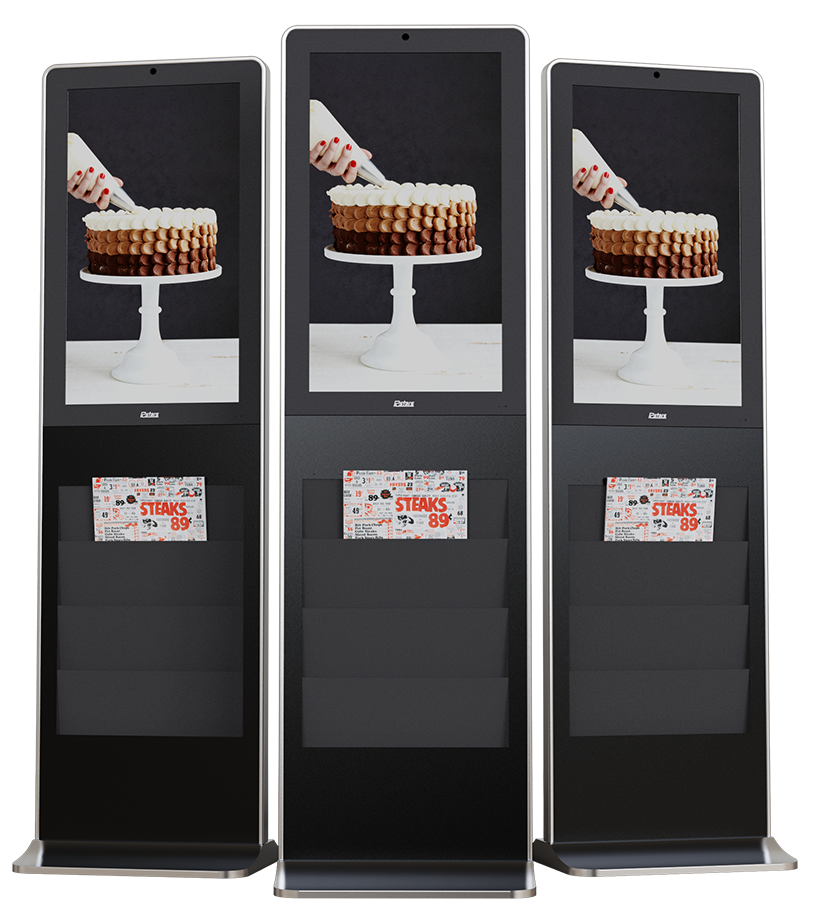

  • Free standing

    Free standing

    4.Secure and steady base, bolted on the floor.
    5.Wheels optional, easy to move.
    6.Optional: Book holders and One whole glass.

Iphone Design Free standing Kiosk RCS-430LBAZ

Android Network Display

Android Network Display

a. Android 7.1/8.1/9.0 operating system optional

b. RK 3288 / RK 3399 optional

c. 2GB/4GB RAM (DDR3) optional

d. 8GB/16GB/32GB/64GB flflash optional

e. 4G(optional)/WLAN/WiFi network connection

f. 802.11 B/G/N Internal WiFi

g. Portrait/landscape display mode

h. 1080P display output

i. Remote management software (CMS) optional

Plug And Play Advertising Display

Plug And Play Advertising Display

a. Support picture, music and video to 1080P

b. Support SD/USB inputs

c. Support SD card plug and play automatically

d. USB update function: update documents by USB drive to SD card

e. Support connecting with media player box/PC

f. Playlist function: auto play the designated fifile at the specifific date

g. Timer function: 5 groups timers to turn on/offff at the designated time

All-in-one Windows Display

All-in-one Windows Display

a. CPU: Intel® Celeron® Processor J1900 /Intel® Core®

Processor I3/I5/I7

b. Chipset: Intel Bay trail SOC /Intel® H310 Chipset

c. System memory: 4GB/8GB RAM, 120GB/240GB SSD

d. Input connectors: VGA/USB/RJ45/Audio

e. Operating system: Windows 7/8/10, Linux

f. Preinstall Intel OS service optional

LCD Monitor

LCD Monitor

a. Professional design for 7-24 hours operation

b. DP/VGA inputs

c. Full HD resolution supported

d. Support connecting with media player box/PC

Full Specification

SPECIFICATIONS

Panel Model

43inch TFT LED

Max Resolution

1920x1080

Aspect Ratio

16:09

Pixel Pitch

0.4903×0.4903

Viewing Angle

89/89/89/89

Contrast Ratio

1200:1

Brightness

500cd/m²

Response Time

26ms

Display Area (mm)

941.184x529.416mm

Panel Size(mm)

973x565.8x29mm

Screen Weight

11Kg

Lamp Type

WLED

POWER

Power

AC 100-240V,50-60 Hz

SOUND

2 x 10W

MEDIA FORMATS

Video

H.264, MKV, WMV9, MPEG 1/2/4,HD Divx, Xvid, RM/RMVB;


BMP/PNG/GIF/JPEG

Audio

MP3,WMA,WAV,EAAC+, MP2 dec,
Vorbis (Ogg), AC3, FLAC, APE, BSAC

Scrolling Text

txt

ON-SCREEN DISPLAY LANGUAGES

On-screen display languages

English, French, German, Italian,
Polish, Russian, Simplified Chinese,
Spanish, Turkish, Arabic, Japanese,
Traditional Chinese etc.

Warranty

2 years warranty

Operating Humidity




CONNECTORS

USB 2.0

Video MPG AVI MP4, RM RMVB.T5).
Audio (MP3.1920x1080/1080x1920,WMA),
lmage (UPG, GIF,BMP,PNG)

SD


4G SIM (Optional)

LTE

DP


LAN

RJ45 Port, 10/100M Ethernet

WiFi

Built-in WiFi 802.11B/G/N

USB

USB 2.0 HOST (x2)

LAN

10/100M Ethernet (Network version screen only)

Wi-Fi

802.11 b/g/n (Network version screen only)





RCS-RCS-430LB

RCS-RCS-430LB

Iphone Design Free standing Kiosk

22 -75inch

Black/White optional

One whole glass optional

Book holders  optional

Black

White
