Product features
Android
Plug&Play
Windows
LCD Monitor
Built-In Stereo Speakers
Support wall hanging (VESA) and embedded installation mode
Low power consumption
Optional size:15/17/19 inch
VGA/DP/TYPE-C
Support water-proof and dust-proof IP65 grade

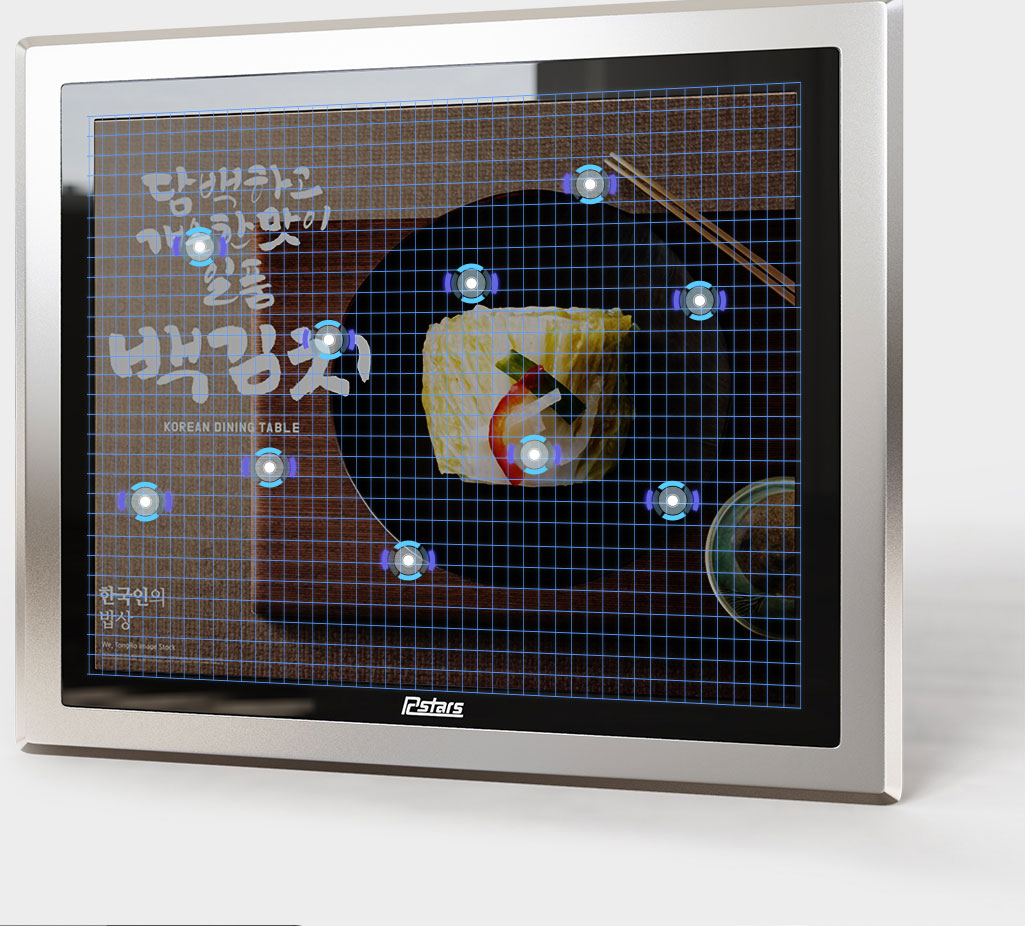

Supports 10 point EETI scheme capacitive touch
Installation:embedded installation

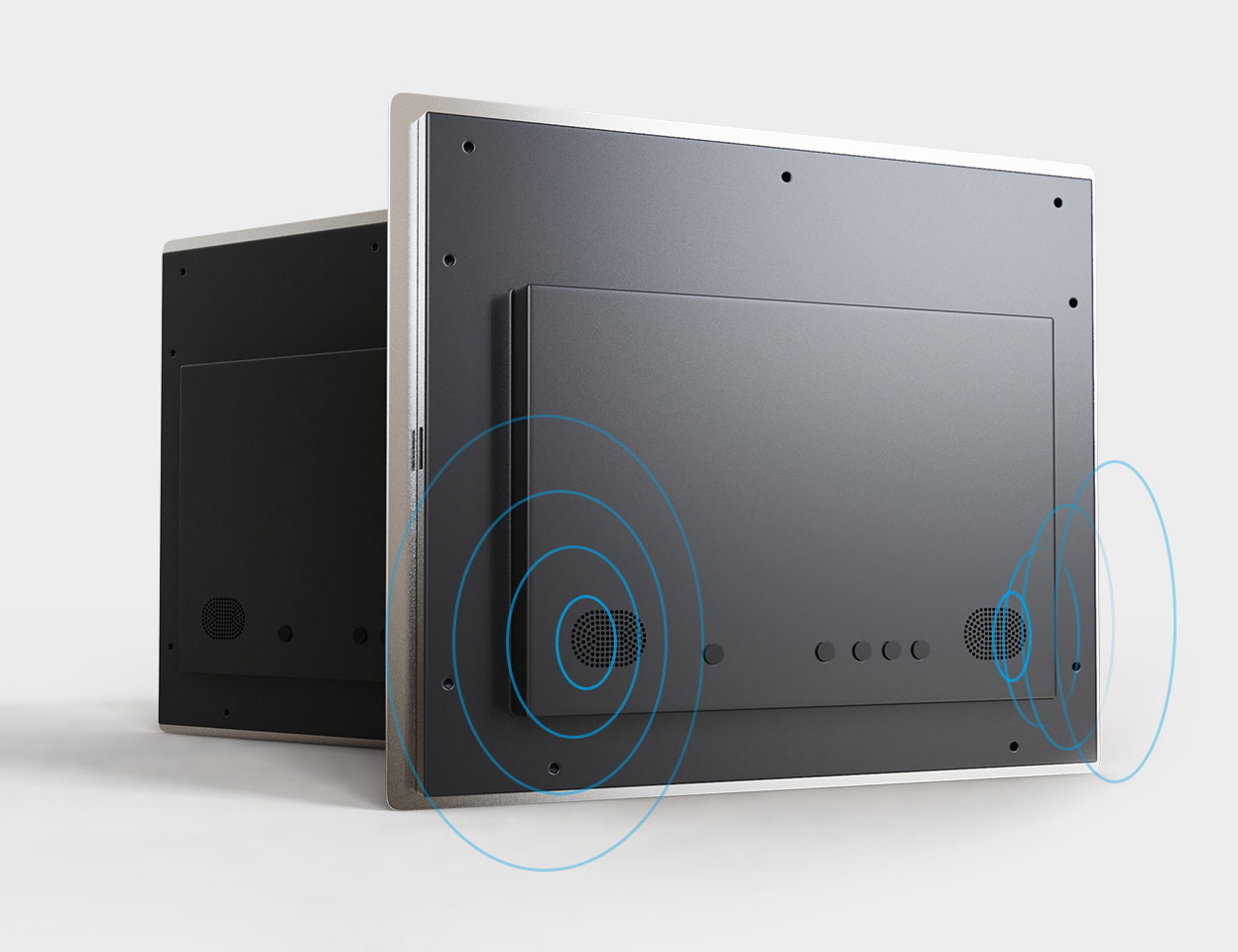

Built-In Stereo Speakers
Support water-proof and dust-proof IP65 grade;
Using LED industrial control screen with High-brightness,High-contrast,the 178/178 Ultra-Wide Viewing Angle and High-resolution display can improve the visual experience;
Supports
10 point EETI scheme
capacitive touch
15/17/19 inches,LED industrial control screen,1920*1080resolution;
Support industrial grade water-proof Herea scheme 10 point capacitive touch ,with touch screen calibration function;
Low power consumption;
LCD Monitor
a. Professional design for 7-24 hours operation
b. DP/VGA inputs
c. Full HD resolution supported
d. Support connecting with media player box/PC
Full Specification
SPECIFICATIONS
Panel Model
17inch TFT LCD
Max Resolution
1280x1024
Aspect Ratio
5:04
Pixel Pitch
0.264x0.264
Viewing Angle
88/88/88/88
Contrast Ratio
1000:1
Brightness
400cd/m²
Response Time
25ms
Display Area (mm)
337.92x270.336
Panel Size(mm)
358.5x296.5x13.4
Screen Weight
1.27KG
Lamp Type
WLED
POWER
Power
DC 12V
SOUND
5Wx2pcs
MEDIA FORMATS
Video
H.264, MKV, WMV9, MPEG 1/2/4,HD Divx, Xvid, RM/RMVB;
BMP/PNG/GIF/JPEG
Audio
MP3,WMA,WAV,EAAC+, MP2 dec,
Vorbis (Ogg), AC3, FLAC, APE, BSAC
Scrolling Text
txt
ON-SCREEN DISPLAY LANGUAGES
On-screen display languages
English, French, German, Italian,
Polish, Russian, Simplified Chinese,
Spanish, Turkish, Arabic, Japanese,
Traditional Chinese etc.
Warranty
2 years warranty
Operating Humidity
CONNECTORS
USB 2.0
Video MPG AVI MP4, RM RMVB.T5).
Audio (MP3.1920x1080/1080x1920,WMA),
lmage (UPG, GIF,BMP,PNG)
SD
4G SIM (Optional)
LTE
DP
LAN
RJ45 Port, 10/100M Ethernet
WiFi
Built-in WiFi 802.11B/G/N
USB
USB 2.0 HOST (x2)
LAN
10/100M Ethernet (Network version screen only)
Wi-Fi
802.11 b/g/n (Network version screen only)
170OPM
Industrial grade display
17 inch
Support water-proof and dust-proof IP65 grade
Silver
